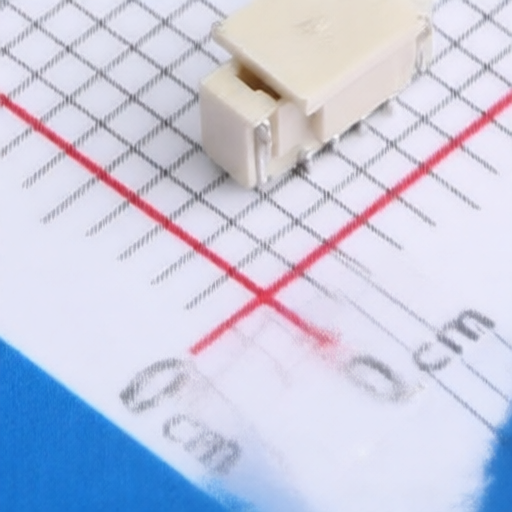

Hong Cheng HCZZ0530-4
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HCZZ0530-4
Package:
SMD,p=0.8mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 0.8mm
Description:
Connector Header 4 position 0.8mm Pitch 500mA Surface Mount,Vertical -25℃~+85℃
Datasheet:
Hong Cheng HCZZ0530-4
Products Specifications
Manufacturer:
Package:
SMD,p=0.8mm
Y-Width of Bottom Edge on Board:
1.75mm
Reference Series:
-
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Copper;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
0.8mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
5.5mm
Row Spacing:
-
Z-Height of the Board:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hong Cheng
1228 Products
Shenzhen Hongcheng Electronics Co., Ltd.
(hereinafter referred to as "Hong Cheng") is a technology-based company integrating R&D, production and sales. The company's main products are 0.8/1.0/1.25/1.5/2.0/2.54/3.96 pitch pin headers, USB sockets, HDMI, network sockets, headphone sockets, VGA sockets, lamp holders and other products, which are widely used in smart home, automobile, consumer electronics and other fields. HongCheng has independent product R&D and design capabilities and mold manufacturing and processing capabilities. It can design and produce various complex plastic products and precision molding molds according to customer requirements. At the same time, HongCheng has a complete quality inspection system to ensure that customers receive assured and satisfactory products.
