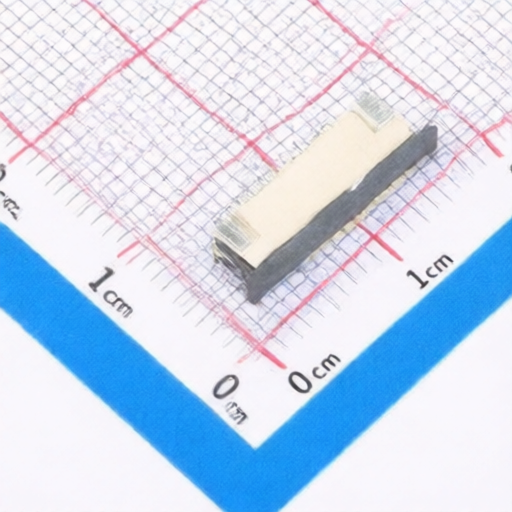

Hong Cheng HC-FPC-1.0-9P-CXH25
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-FPC-1.0-9P-CXH25
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 9POS 1mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 9 Position 1mm Pitch Bottom Contact Surface Mount, Right Angle -25℃~+85℃
Datasheet:
Hong Cheng HC-FPC-1.0-9P-CXH25
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Locking Feature:
Slide Lock
Operating Temperature:
-25℃~+85℃
Number of Contacts:
9P
Contact Type:
Bottom Contact
FFC, FCB Thickness:
0.3mm
Pitch:
1mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
