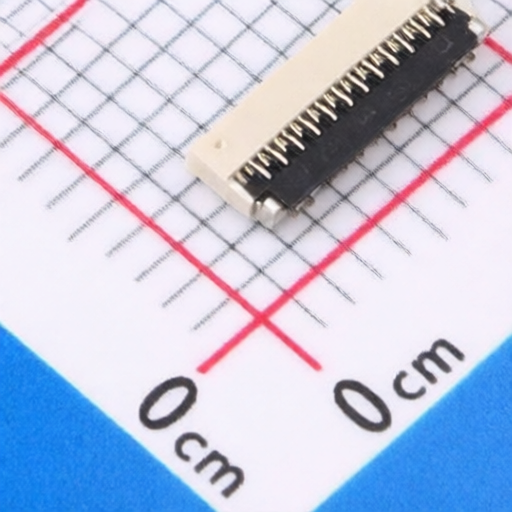

Hong Cheng HC-FPC-0.3-23P-FH10
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-FPC-0.3-23P-FH10
Package:
SMD,P=0.3mm,Surface Mount,Right Angle(Staggered Pins)
Customer #:
Key Attributes:
CONN FFC FPC 23POS 0.3mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 23 Position 0.3mm Pitch Bottom Contact Surface Mount, Right Angle -55℃~+85℃
Datasheet:
Hong Cheng HC-FPC-0.3-23P-FH10
Products Specifications
Manufacturer:
Package:
SMD,P=0.3mm,Surface Mount,Right Angle(Staggered Pins)
Operating Temperature:
-55℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
23P
Contact Type:
Bottom Contact
FFC, FCB Thickness:
0.2mm
Pitch:
0.3mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hong Cheng
1228 Products
Shenzhen Hongcheng Electronics Co., Ltd.
(hereinafter referred to as "Hong Cheng") is a technology-based company integrating R&D, production and sales. The company's main products are 0.8/1.0/1.25/1.5/2.0/2.54/3.96 pitch pin headers, USB sockets, HDMI, network sockets, headphone sockets, VGA sockets, lamp holders and other products, which are widely used in smart home, automobile, consumer electronics and other fields. HongCheng has independent product R&D and design capabilities and mold manufacturing and processing capabilities. It can design and produce various complex plastic products and precision molding molds according to customer requirements. At the same time, HongCheng has a complete quality inspection system to ensure that customers receive assured and satisfactory products.
