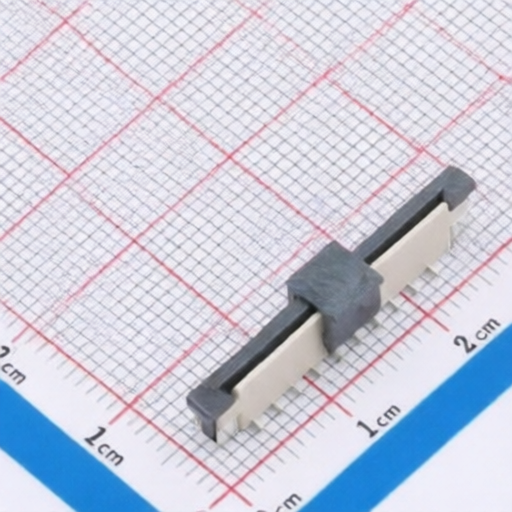

Hong Cheng HC-FPC-1.0-20P-LH25
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-FPC-1.0-20P-LH25
Package:
SMD,P=1mm(Staggered Pins)
Customer #:
Key Attributes:
CONN FFC FPC 20POS 1mm VERTICAL - 1 SIDED CNT SMD
Description:
FFC/FPC Connector 20 Position 1mm Pitch Single-side Contact/Vertical Surface Mount -40℃~+85℃
Datasheet:
Hong Cheng HC-FPC-1.0-20P-LH25
Products Specifications
Manufacturer:
Package:
SMD,P=1mm(Staggered Pins)
Locking Feature:
Slide Lock
Operating Temperature:
-40℃~+85℃
Number of Contacts:
20P
Contact Type:
Single-side Contact/Vertical
FFC, FCB Thickness:
0.3mm
Pitch:
1mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 900 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hong Cheng
1228 Products
Shenzhen Hongcheng Electronics Co., Ltd.
(hereinafter referred to as "Hong Cheng") is a technology-based company integrating R&D, production and sales. The company's main products are 0.8/1.0/1.25/1.5/2.0/2.54/3.96 pitch pin headers, USB sockets, HDMI, network sockets, headphone sockets, VGA sockets, lamp holders and other products, which are widely used in smart home, automobile, consumer electronics and other fields. HongCheng has independent product R&D and design capabilities and mold manufacturing and processing capabilities. It can design and produce various complex plastic products and precision molding molds according to customer requirements. At the same time, HongCheng has a complete quality inspection system to ensure that customers receive assured and satisfactory products.
