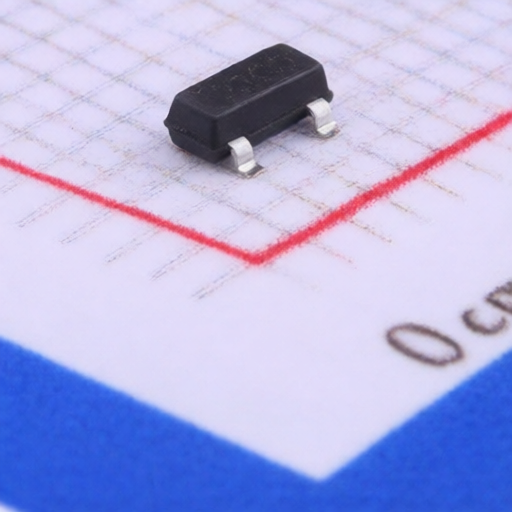

hengjiaxing HX2300A
Manufacturer:
hengjiaxing
Asian Brands
Mfr. Part #:
HX2300A
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 2.5A SOT-23
Description:
N-Channel 20V 2.5A 0.71W Surface Mount SOT-23
Datasheet:
hengjiaxing HX2300A
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
85mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
20pF
Number:
1 N-channel
Output Capacitance(Coss):
38pF
Input Capacitance(Ciss):
180pF
Pd - Power Dissipation:
710mW
Gate Charge(Qg):
3.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
