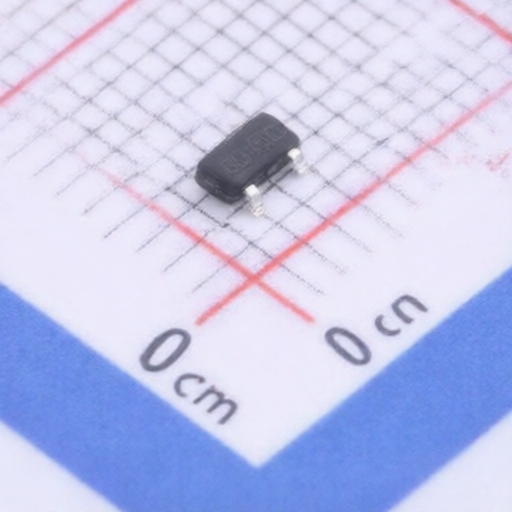

hengjiaxing HX2300X
Manufacturer:
hengjiaxing
Asian Brands
Mfr. Part #:
HX2300X
Package:
SOT-23
Customer #:
Key Attributes:
N-Channel, Current:3.6A, Voltage:20V
Description:
20V 3.6A 70mΩ@2.5V 1.2V@250uA 1W SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
hengjiaxing HX2300X
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.6A
RDS(on):
70mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.2V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
80pF
Output Capacitance(Coss):
120pF
Pd - Power Dissipation:
1W
Input Capacitance(Ciss):
300pF
Gate Charge(Qg):
10nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
