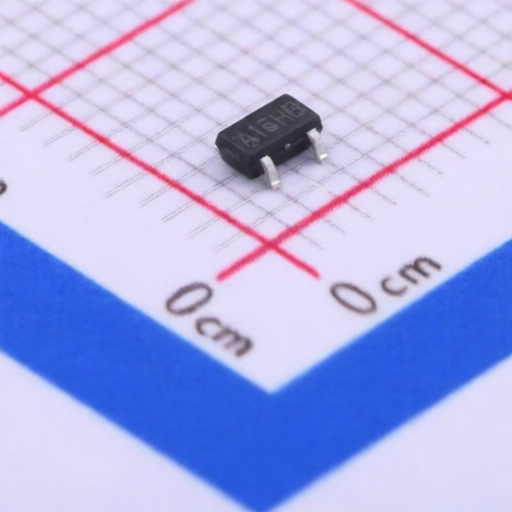

hengjiaxing HX2301
Manufacturer:
hengjiaxing
Asian Brands
Mfr. Part #:
HX2301
Package:
SOT-23-3
Customer #:
Key Attributes:
MOSFET P-CH 20V 2.8A SOT-23-3
Description:
P-Channel 20V 2.8A 1W Surface Mount SOT-23-3
Products Specifications
Manufacturer:
Package:
SOT-23-3
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
85mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.2V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF
Number:
1 P-Channel
Input Capacitance(Ciss):
560pF
Pd - Power Dissipation:
1W
Gate Charge(Qg):
6.1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
