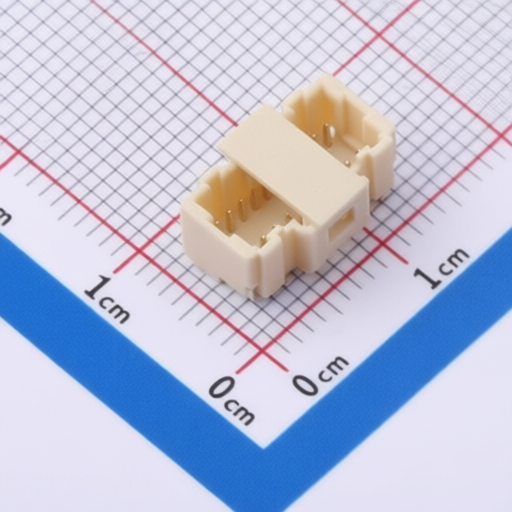

HDGC HDGC1008WV-S-2X10P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC1008WV-S-2X10P
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 20POS 1mm
Description:
Connector Header 20 position 1mm Pitch Surface Mount,Vertical
Datasheet:
HDGC HDGC1008WV-S-2X10P
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
7.5mm
Reference Series:
-
Pins Structure:
2x10P
Contact Plating:
Gold
Contact Material:
PA9T;Phosphor Bronze
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
10
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
5.35mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
