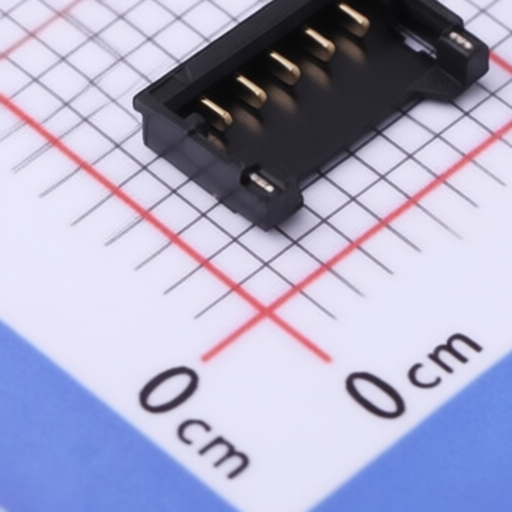

HDGC HDGC1202WR-S-5P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC1202WR-S-5P
Package:
SMD,P=1.2mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 5POS 1.2mm
Description:
Connector Header 5 position 1.2mm Pitch 2A Surface Mount, Right Angle -40℃~+105℃
Datasheet:
HDGC HDGC1202WR-S-5P
Products Specifications
Manufacturer:
Package:
SMD,P=1.2mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.5mm
Reference Series:
Pico-EZmate(MX 1.2)
Pins Structure:
1x5P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
-
Supplementary Features:
Auxiliary Solder Pin
Pitch:
1.2mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
1.4mm
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
