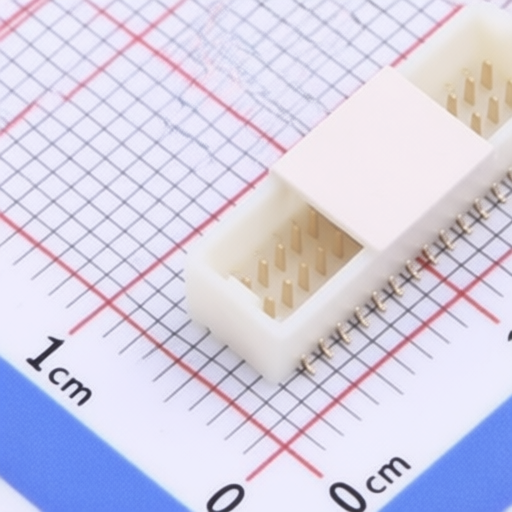

HDGC HDGC1002WVD-S-2X15P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC1002WVD-S-2X15P
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 30POS 1mm
Description:
Connector Header 30 position 1mm Pitch Surface Mount,Vertical
Datasheet:
HDGC HDGC1002WVD-S-2X15P
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
5.8mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x15P
Reference Series:
SHD
Contact Material:
Copper alloy;PA
Pitch:
1mm
Number of PINs Per Row:
15
Number of Rows:
2
Z-Height of the Board:
4.8mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
