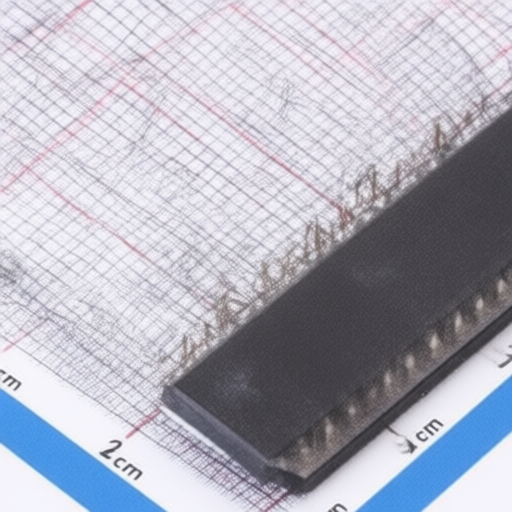

HCTL PM254-1-14-W-8.5
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
PM254-1-14-W-8.5
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 14POS 2.54mm SINGLE ROW TH R/A
Description:
Female Header 14 Position 2.54mm Pitch Single Row Through Hole, Right Angle -40℃~+105℃
Datasheet:
HCTL PM254-1-14-W-8.5
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Pitch:
2.54mm
Row Spacing:
-
Number of Rows:
1
Number of Pins:
14P
Voltage Rating (Max):
-
Contact Material:
Copper alloy
Holes Structure:
1x14P
Operating Temperature:
-40℃~+105℃
Holes Direction:
Side
Current Rating:
3A
Mounting Type:
Right Angle
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 6 |
| Multiple | 6 |
| Standard Packaging | 192 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HCTL
2177 Products
Shenzhen Huacan Tianlu Electronics Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The company is located in Bao'an District, Shenzhen.
Shenzhen Huacan Tianlu Electronics Co., Ltd. has been focusing on the research and development, production and sales of various connectors, TYPE-C, and rocker switches since its establishment. The company has a group of professional technicians and a complete quality monitoring system, and has successively introduced advanced testing instruments and production equipment at home and abroad to ensure product quality.
