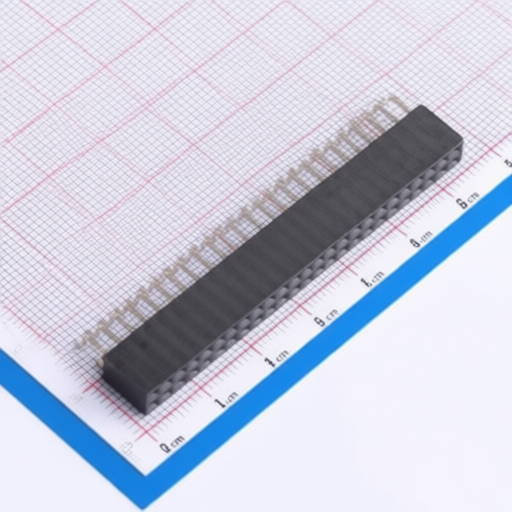

HCTL PM254-2-25-WS-8.5
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
PM254-2-25-WS-8.5
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN SOCKET 50POS 2.54mm DUAL ROW SMD R/A
Description:
Female Header 50 Position 2.54mm Pitch Dual Row Surface Mount, Right Angle -40℃~+105℃
Datasheet:
HCTL PM254-2-25-WS-8.5
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Number of Pins:
50P
Contact Material:
Copper alloy
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x25P
Holes Direction:
Side
Current Rating:
3A
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 9 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
