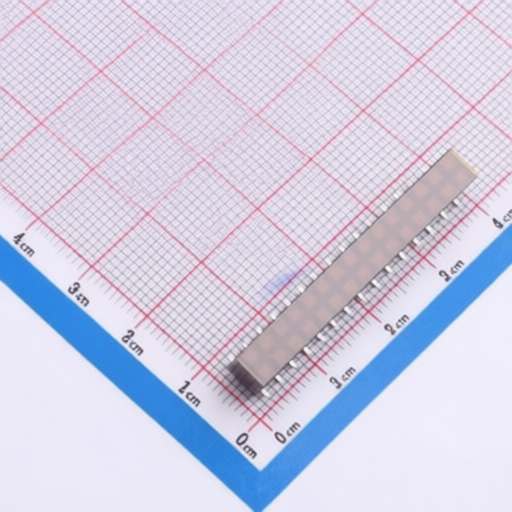

HCTL PM254-2-15-S-8.5-P
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
PM254-2-15-S-8.5-P
Package:
SMD,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 30POS 2.54mm DUAL ROW SMD
Description:
Female Header 30 Position 2.54mm Pitch Dual Row Surface Mount -40℃~+105℃
Datasheet:
HCTL PM254-2-15-S-8.5-P
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Number of Pins:
30P
Voltage Rating (Max):
-
Contact Material:
Brass
Holes Structure:
2x15P
Operating Temperature:
-40℃~+105℃
Holes Direction:
Top
Current Rating:
3A
Mounting Type:
Surface Mount,Vertical
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 400 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HCTL
2177 Products
Shenzhen Huacan Tianlu Electronics Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The company is located in Bao'an District, Shenzhen.
Shenzhen Huacan Tianlu Electronics Co., Ltd. has been focusing on the research and development, production and sales of various connectors, TYPE-C, and rocker switches since its establishment. The company has a group of professional technicians and a complete quality monitoring system, and has successively introduced advanced testing instruments and production equipment at home and abroad to ensure product quality.
