hanxia HX TS2819A 230gf
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX TS2819A 230gf
Package:
SMD,2.8x1.9mm
Customer #:
Key Attributes:
SWITCH TACTILE SPST 230gf SMD
Description:

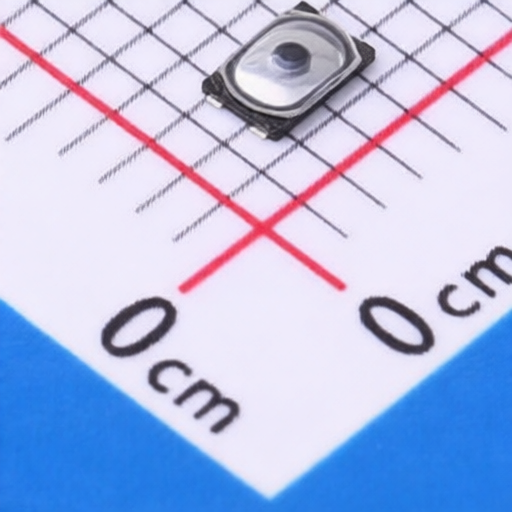

Tactile Switch SPST 230gf 0.55mm SMD (SMT) Tab 2.8mm x 1.9mm Surface Mount
Datasheet:
hanxia HX TS2819A 230gf
Products Specifications
Category:
Manufacturer:
Package:
SMD,2.8x1.9mm
with Bracket:
Without Bracket
PressForce:
2.3N
Length:
2.8mm
Height:
0.55mm
Voltage Rating:
12V
Switching Life:
300,000 Cycles
Operating Temperature:
-40℃~+85℃
Width:
1.9mm
Installation Method:
Surface Mount,Vertical
Termination Style:
SMD(SMT) Tab
Actuator Style:
-
With Lamp:
No
Actuator/Cap Color:
Silver
Circuit:
SPST
IP Rating:
IP67
Contact Current:
50mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 10000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
