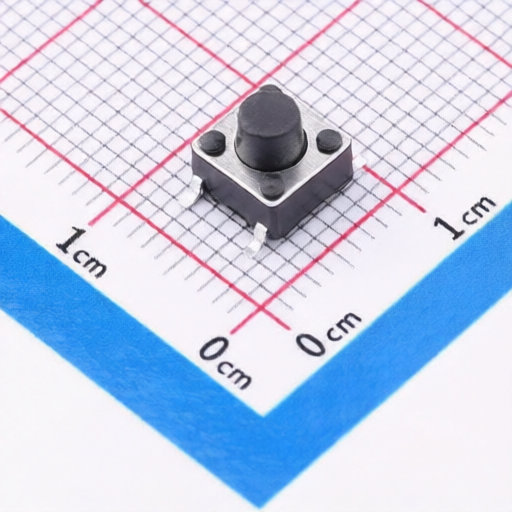

hanxia HX TS666TP 250gf 009
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX TS666TP 250gf 009
Package:
SMD-4P,6x6mm
Customer #:
Key Attributes:
SWITCH TACTILE SPST 250gf SMD
Description:
Tactile Switch SPST 250gf 6mm SMD (SMT) Tab 6mm x 6mm Surface Mount
Datasheet:
hanxia HX TS666TP 250gf 009
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,6x6mm
with Bracket:
Without Bracket
PressForce:
2.5N
Length:
6mm
Height:
6mm
Voltage Rating:
12V
Switching Life:
100,000 cycles
Operating Temperature:
-25℃~+70℃
Width:
6mm
Installation Method:
Surface Mount,Vertical
Termination Style:
SMD(SMT) Tab
Actuator Style:
Round Button
With Lamp:
No
Circuit:
SPST
Actuator/Cap Color:
Black
IP Rating:
-
Contact Current:
50mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
