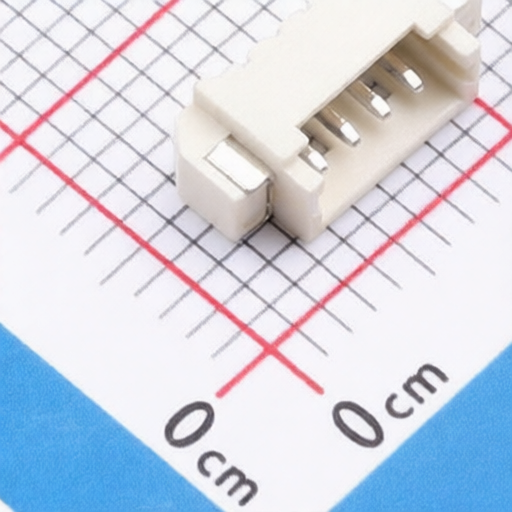

hanxia HX-1.25-4AWB
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX-1.25-4AWB
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Description:
PicoBlade(MX 1.25) 1x4P Tin -25℃~+70℃ 1.25mm 125V 4 1 Surface Mount, Right Angle SMD,P=1.25mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
hanxia HX-1.25-4AWB
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.2mm
Reference Series:
PicoBlade(MX 1.25)
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+70℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
10mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Z-Height of the Board:
3.55mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
