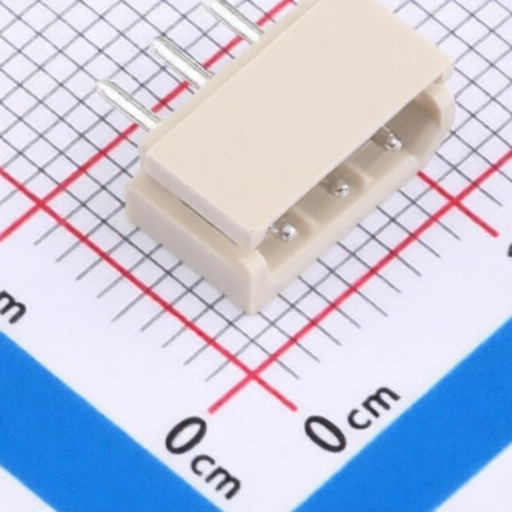

hanxia HX-5264-3A
Manufacturer:
hanxia
Mfr. Part #:
HX-5264-3A
Package:
Through Hole,P=2.5mm
Customer #:
Description:
Connector Header 3 position 2.5mm Pitch 3A Through Hole -25℃~+85℃
Datasheet:
hanxia HX-5264-3A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
-
Reference Series:
Mini-SPOX(5264)
Pins Structure:
1x3P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
-
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
-
Mounting Type:
Through Hole
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
