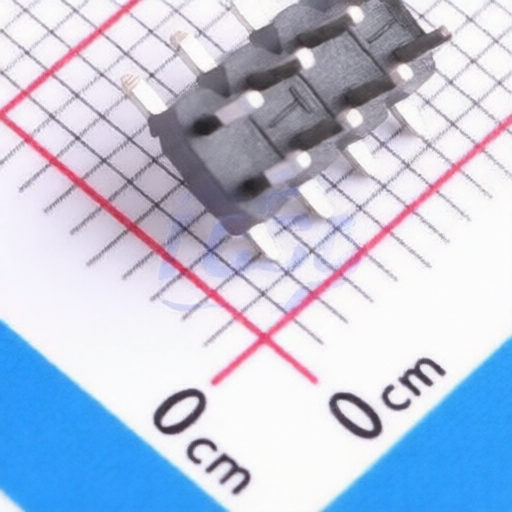

hanxia HX PZ2.0-2x4P TP-D
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PZ2.0-2x4P TP-D
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER 8POS 2mm DUAL ROW SMD
Description:
Pin Header 8 Position 2mm Pitch Dual Row Surface Mount -40℃~+105℃
Datasheet:
hanxia HX PZ2.0-2x4P TP-D
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Pins Structure:
2x4P
Number of Pins:
8P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Supplementary Features:
-
Pitch:
2mm
Insulation Height:
2mm
Length of Mating Pin:
3.8mm
Voltage Rating (Max):
500V
Length of End Connection Pin:
-
Current Rating-Signal:
1.5A
Number of Rows:
2
Mounting Type:
Surface Mount,Vertical
Row Spacing:
2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
