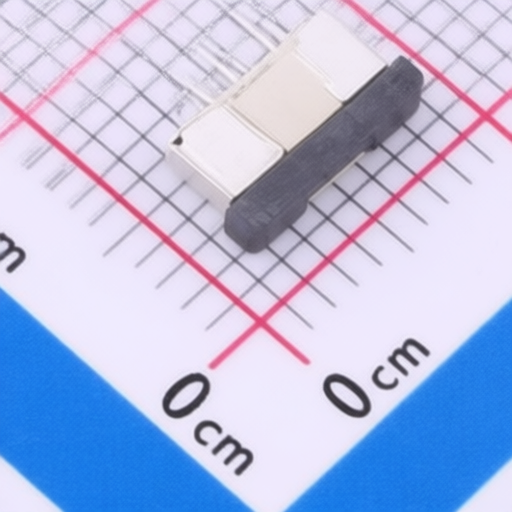

HanElectricity 05B20L04P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
05B20L04P
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 4POS 0.5mm BOTTOM CNT SMD
Description:
FFC/FPC Connector 4 Position 0.5mm Pitch Bottom Contact
Datasheet:
HanElectricity 05B20L04P
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Slide Lock
Number of Contacts:
4P
Pitch:
0.5mm
Voltage Rating (Max):
50V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
