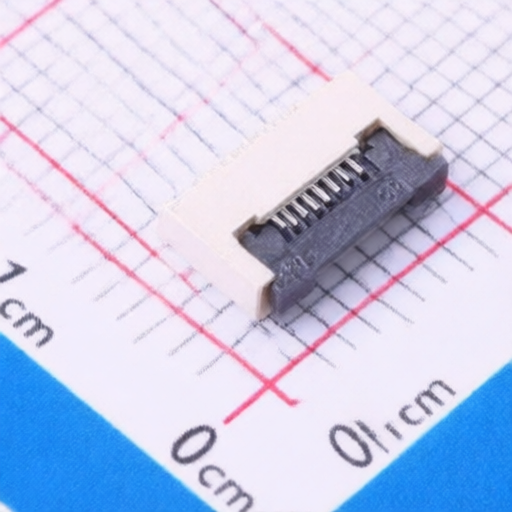

hanxia HX0.5-8P XJH2.0 043
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX0.5-8P XJH2.0 043
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 8POS 0.5mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 8 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle
Datasheet:
hanxia HX0.5-8P XJH2.0 043
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
8P
Pitch:
0.5mm
Current Rating:
400mA
Voltage Rating (Max):
50V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
