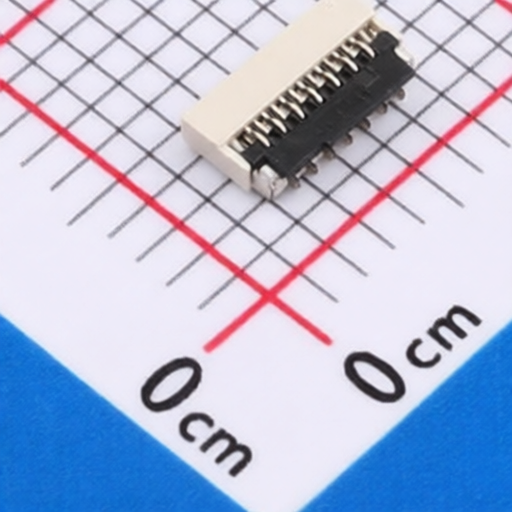

hanxia HX FPC 0.3-13P XGXJ H1.0
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX FPC 0.3-13P XGXJ H1.0
Package:
SMD,P=0.3mm,Surface Mount,Right Angle(Staggered Pins)
Customer #:
Key Attributes:
CONN FFC FPC 13POS 0.3mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 13 Position 0.3mm Pitch Bottom Contact Surface Mount, Right Angle
Datasheet:
hanxia HX FPC 0.3-13P XGXJ H1.0
Products Specifications
Manufacturer:
Package:
SMD,P=0.3mm,Surface Mount,Right Angle(Staggered Pins)
Operating Temperature:
-25℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
13P
Pitch:
0.3mm
Current Rating:
200mA
Voltage Rating (Max):
30V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
