GOODWORK 60N04DF
Manufacturer:
GOODWORK
Asian Brands
Mfr. Part #:
60N04DF

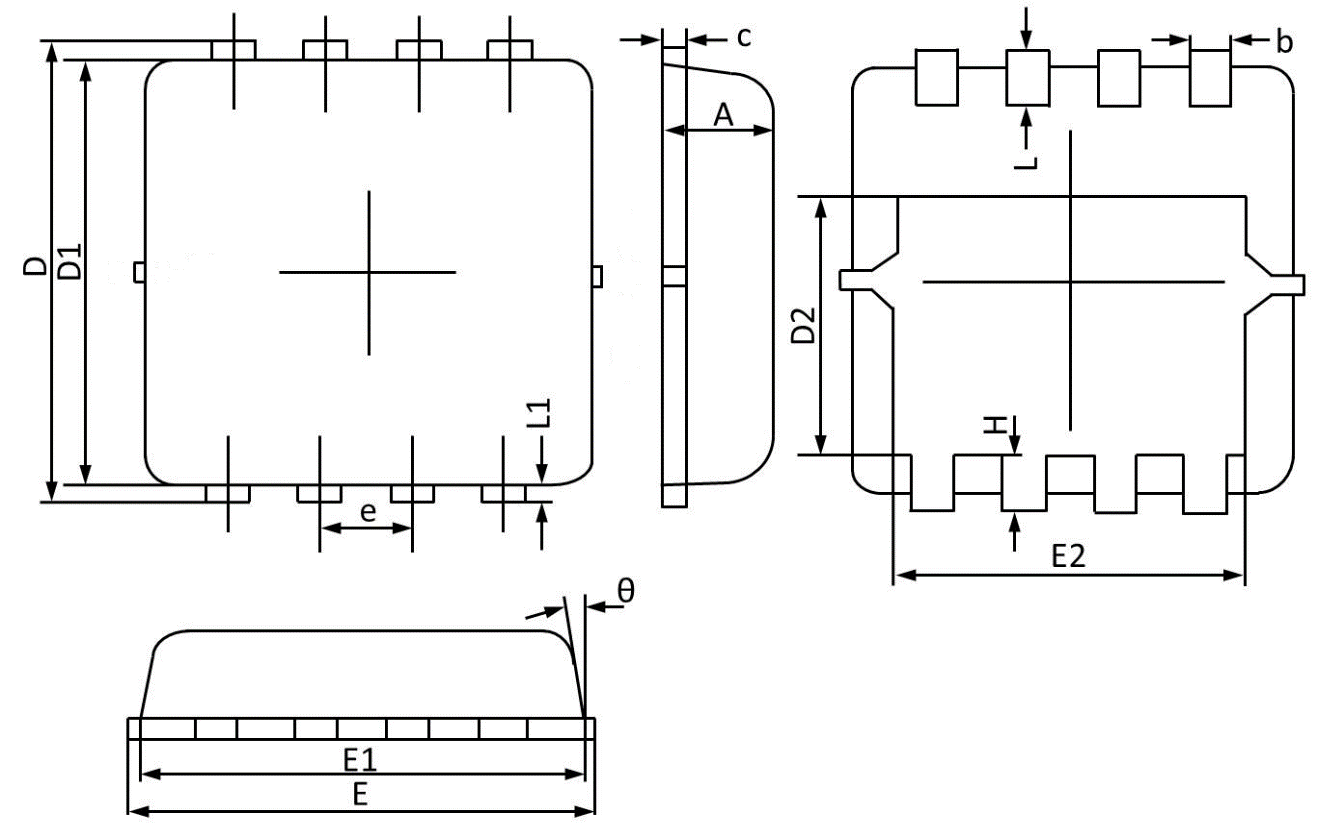

Package:
PDFN-8(3x3)
Customer #:
Description:
40V 60A 7mΩ@10V,12A 1.35V@250uA 1 N-channel 39W PDFN-8(3x3) Single FETs, MOSFETs RoHS
Datasheet:
GOODWORK 60N04DF
Products Specifications
Manufacturer:
Package:
PDFN-8(3x3)
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
60A
RDS(on):
7mΩ@10V,12A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.35V@250uA
Reverse Transfer Capacitance (Crss@Vds):
38pF@15V
Number:
1 N-channel
Input Capacitance(Ciss):
690pF@15V
Pd - Power Dissipation:
39W
Gate Charge(Qg):
5.8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
GOODWORK
2126 Products
Shenzhen Goodwork Electronics Co., Ltd.
(hereinafter referred to as "GOODWORK") was established in 2004. It is a national high-tech enterprise integrating professional R&D, production and sales of semiconductor discrete devices. Headquartered in Shenzhen, its own brand is "GK." GOODWORK's factory has introduced professional production equipment and testing instruments, and has passed ISO9001, ISO14001, and IATF16949 international quality management system certification. The main products include: diodes, transistors, rectifier bridge stacks, TVS, MOS, ESD, and three-terminal regulators. The products have achieved comprehensive independent research and development, with complete packaging shapes, tailored for customers, and passed the US UL, SGS EU ROHS and REACH environmental protection certification. The products are widely used in automotive electronics, new energy, lighting, industry, security, communications and other fields.
