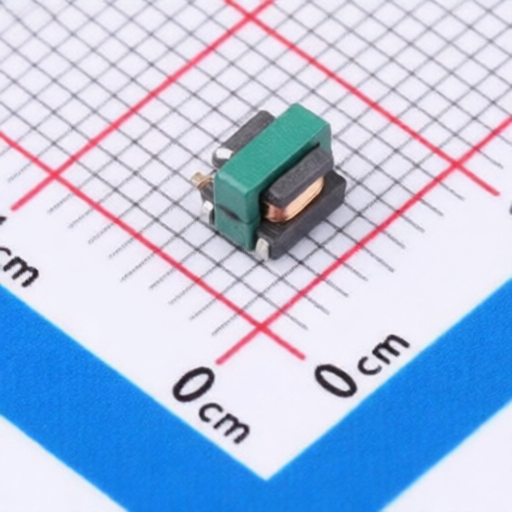

FANGCHENG FC-SCT4.2-1:70
Manufacturer:
FANGCHENG
Asian Brands
Mfr. Part #:
FC-SCT4.2-1:70
Package:
SMD
Customer #:
Key Attributes:
CURR SENSE XFMR 1:70 7A SMD
Description:
7A 1:70 Current Sense Transformer Surface Mount
Datasheet:
FANGCHENG FC-SCT4.2-1:70
Products Specifications
Category:
Manufacturer:
Package:
SMD
Turns Ratio:
1:70
Secondary Side Inductance:
400uH
Rated input Current:
7A
DCR Primary Side (Max):
3mΩ
DCR Secondary Side (Max):
4.6Ω
Isolation Voltage(Vrms):
1.5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504500000 |
| USHTS | 8504508000 |
| TARIC | 8504500010 |
| CAHTS | 8504500000 |
| BRHTS | 85045000 |
| INHTS | 85045010 |
| MXHTS | 8504.50.01 |
