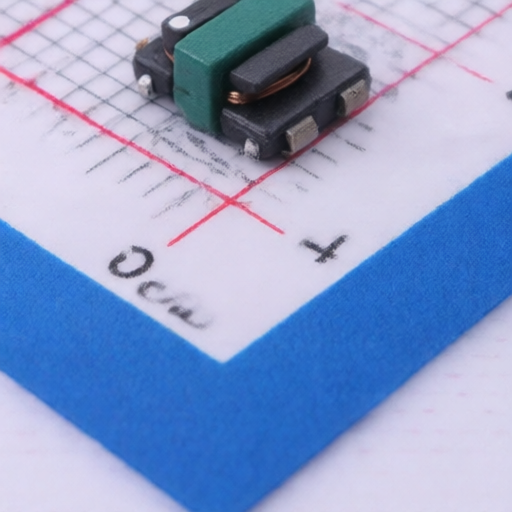

FANGCHENG FC-SCT4.6-1:70
Manufacturer:
FANGCHENG
Asian Brands
Mfr. Part #:
FC-SCT4.6-1:70
Package:
SMD-4P,7x5.2mm
Customer #:
Key Attributes:
SENSE XFMR 1:70 20A SMD
Description:
20A 1:70 Sense Transformer 1.5mΩ Primary 5.04Ω Secondary 0.652mH Surface Mount-4P,7x5.2mm
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,7x5.2mm
Turns Ratio:
1:70
Secondary Side Inductance:
652uH
Rated input Current:
20A
DCR Primary Side (Max):
1.5mΩ
DCR Secondary Side (Max):
5.04Ω
Isolation Voltage(Vrms):
1.5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504500000 |
| USHTS | 8504508000 |
| TARIC | 8504500010 |
| CAHTS | 8504500000 |
| BRHTS | 85045000 |
| INHTS | 85045010 |
| MXHTS | 8504.50.01 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
FANGCHENG
319 Products
Fangcheng Electronics (Dongguan) Co., Ltd.
, (hereinafter referred to as "FC" or "FANGCHENG") established in 2020, is a high-tech enterprise specializing in the design, manufacture, and sale of inductors, transformers, current transformers, planar transformers, and other magnetic components. The company boasts a team of senior engineers and mold automation design professionals, equipped with advanced experimental development and product testing equipment, achieving a leading technical level domestically. The company's products include various types of inductor devices such as SMD power inductors, common-mode inductance, plug-in inductors. These products are widely applied in new energy vehicles, communication equipment, industrial control, rail transit, military and medical fields, and aviation power supplies. FC adheres to the principles of quality assurance and continual improvement, aiming to manufacture excellent products and achieve customer satisfaction. The company has establish
