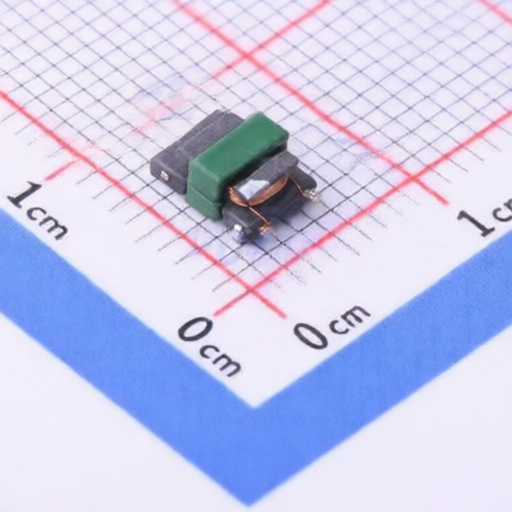

FANGCHENG FC- SCT4.6-1:100
Manufacturer:
FANGCHENG
Asian Brands
Mfr. Part #:
FC- SCT4.6-1:100
Package:
SMD-4P,7x5.2mm
Customer #:
Key Attributes:
SENSE XFMR 1:100 20A SMD
Description:
20A 1:100 Sense Transformer 1.5mΩ Primary 10.68Ω Secondary 1.33mH Surface Mount-4P,7x5.2mm
Datasheet:
FANGCHENG FC- SCT4.6-1:100
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,7x5.2mm
Turns Ratio:
1:100
Secondary Side Inductance:
1.33mH
Rated input Current:
20A
DCR Primary Side (Max):
1.5mΩ
DCR Secondary Side (Max):
10.68Ω
Isolation Voltage(Vrms):
1.5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504500000 |
| USHTS | 8504508000 |
| TARIC | 8504500010 |
| CAHTS | 8504500000 |
| BRHTS | 85045000 |
| INHTS | 85045010 |
| MXHTS | 8504.50.01 |
