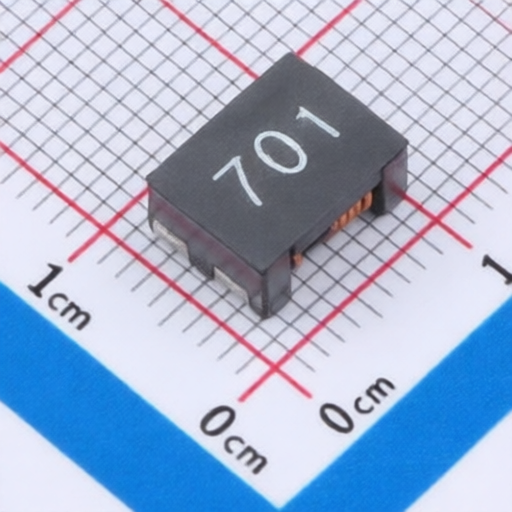

EEC AL-9070A-701T0
Manufacturer:
EEC
Asian Brands
Mfr. Part #:
AL-9070A-701T0
Package:
SMD-4P,9.5x7mm
Customer #:
Key Attributes:
CMC 5A 500Ω SMD
Description:
Common Mode Choke Surface Mount-4P 9.5x7mm 500Ω@100MHz 5A DCR 10mΩ
Datasheet:
EEC AL-9070A-701T0
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,9.5x7mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
10mΩ
Voltage Rating (AC):
-
Voltage Rating - DC:
125V
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
