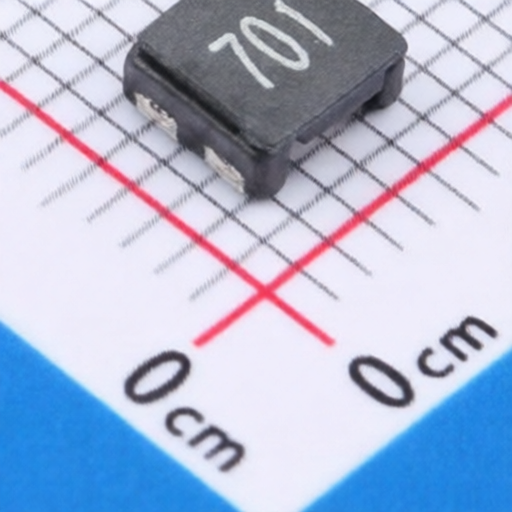

EEC AL-4520A-701T0
Manufacturer:
EEC
Asian Brands
Mfr. Part #:
AL-4520A-701T0
Package:
SMD-4P,4.7x4.5mm
Customer #:
Key Attributes:
CMC 4.2uH 2.2A 700Ω SMD
Description:
4.2uH Common Mode Choke Surface Mount-4P 4.7x4.5mm 700Ω@100MHz 2.2A DCR 58mΩ
Datasheet:
EEC AL-4520A-701T0
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,4.7x4.5mm
Inductance @ Frequency:
4.2uH
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
58mΩ
Voltage Rating (AC):
-
Voltage Rating - DC:
50V
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
