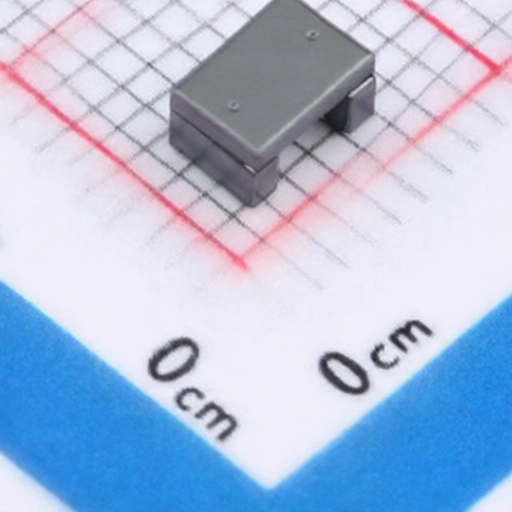

EEC AC-4532A-220U0
Manufacturer:
EEC
Asian Brands
Mfr. Part #:
AC-4532A-220U0
Package:
SMD-4P,4.5x3.2mm
Customer #:
Key Attributes:
CMC 22uH 200mA 500Ω SMD
Description:
22uH Common Mode Choke Surface Mount-4P 4.5x3.2mm 500Ω@10MHz 200mA DCR 1.4Ω
Datasheet:
EEC AC-4532A-220U0
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,4.5x3.2mm
Inductance @ Frequency:
22uH
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+150℃
DC Resistance(DCR):
1.4Ω
Voltage Rating (AC):
-
Voltage Rating - DC:
50V
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
