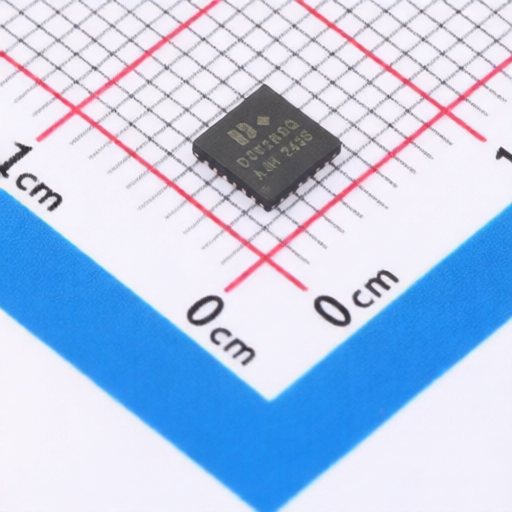

DOINGTER DO6288Q
Manufacturer:
DOINGTER
Asian Brands
Mfr. Part #:
DO6288Q
Package:
QFN-24-EP(4x4)
Customer #:
Key Attributes:
Three-phase half-bridge MOSFET/IGBT gate driver
Description:
QFN-24-EP(4x4) Gate Drivers RoHS
Datasheet:
DOINGTER DO6288Q
Products Specifications
Manufacturer:
Package:
QFN-24-EP(4x4)
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
150ns
Propagation Delay tpHL:
120ns
Peak Output Current(Source):
1.2A
Rise Time:
30ns
Peak Output Current(Sink):
1.5A
Features:
Under Voltage Protection
Fall Time:
30ns
Quiescent Current(Iq):
230uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
8V~20V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
