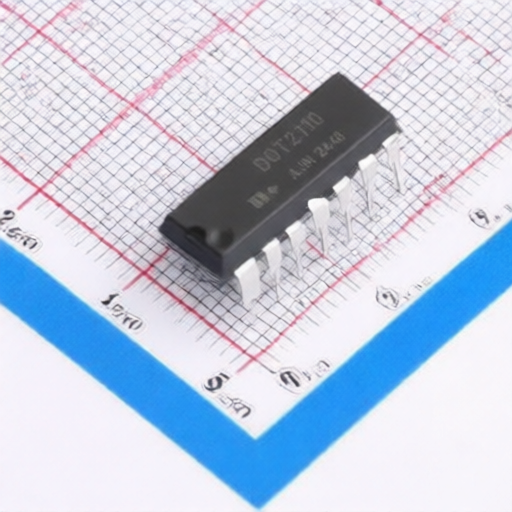

DOINGTER DOT2110
Manufacturer:
DOINGTER
Asian Brands
Mfr. Part #:
DOT2110
Package:
DIP-14
Customer #:
Key Attributes:
High Voltage, High Speed Power MOSFET and IGBT Drivers
Description:
High Side Gate Driver IC MOSFET IGBT DIP-14
Datasheet:
DOINGTER DOT2110
Products Specifications
Manufacturer:
Package:
DIP-14
Operating Temperature:
-40℃~+85℃
Propagation Delay tpLH:
120ns
Propagation Delay tpHL:
94ns
Rise Time:
25ns
Fall Time:
17ns
Features:
Under Voltage Protection
Quiescent Current(Iq):
15uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
10V~20V
Driven Configuration:
High Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
