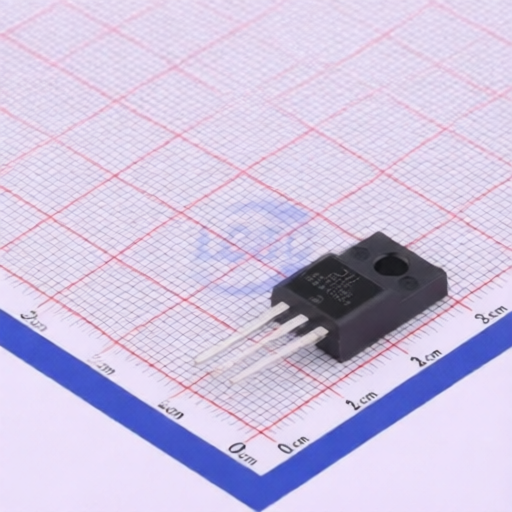

DIODES DGTD65T15H2TF
Manufacturer:
DIODES
Mfr. Part #:
DGTD65T15H2TF
Package:
ITO-220AB-3
Customer #:
Key Attributes:
650V FIELD STOP IGBT IN ITO220AB
Description:
48W 650V FS (Field Stop) ITO-220AB-3 Single IGBTs RoHS
Datasheet:
DIODES DGTD65T15H2TF
Products Specifications
Manufacturer:
Package:
ITO-220AB-3
Pd - Power Dissipation:
48W
Td(off):
128ns
Td(on):
19ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
57pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@0.5mA
Gate Charge(Qg):
61nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
150ns
Switching Energy(Eoff):
86uJ
Turn-On Energy (Eon):
270uJ
Input Capacitance(Cies):
1.129nF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
31pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIODES
6026 Products
Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets.
