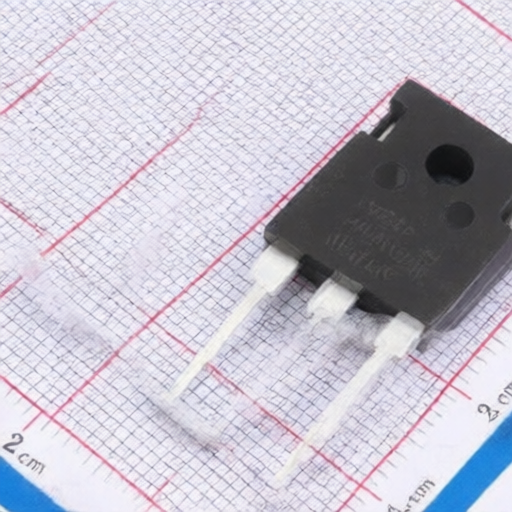

Fuji Electric FGW40XS120C
Manufacturer:
Fuji Electric
Mfr. Part #:
FGW40XS120C
Package:
TO-247
Customer #:
Key Attributes:
Discrete IGBT (XS-series) 1200V/ 40A
Description:
351W 1.2kV TO-247 Single IGBTs RoHS
Datasheet:
Fuji Electric FGW40XS120C
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
351W
Td(off):
250ns
Td(on):
45ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
38pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.9V@40mA
Pulsed Current- Forward(Ifm):
160A
Reverse Recovery Time(trr):
500ns
Switching Energy(Eoff):
1.7mJ
Turn-On Energy (Eon):
1.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 600 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
