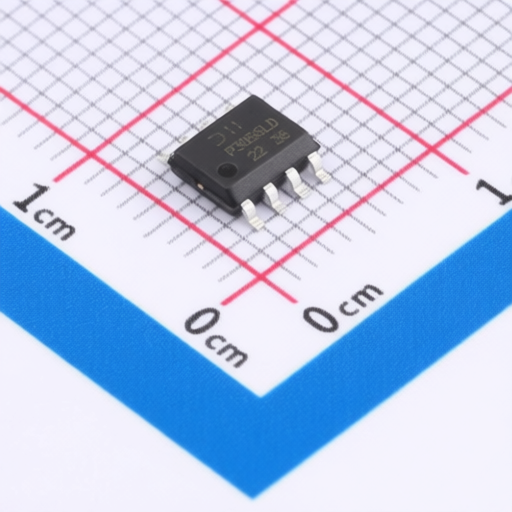

DIODES DMP3056LSDQ-13
Manufacturer:
DIODES
Mfr. Part #:
DMP3056LSDQ-13
Package:
SO-8
Customer #:
Description:
P-Channel 30V 6.9A 2.5W Surface Mount SO-8
Datasheet:
DIODES DMP3056LSDQ-13
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
6.9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
45mΩ@10V;65mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.7V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
92pF
Number:
2 P-Channel
Output Capacitance(Coss):
114pF
Input Capacitance(Ciss):
722pF
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
6.8nC@4.5V;13.7nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
