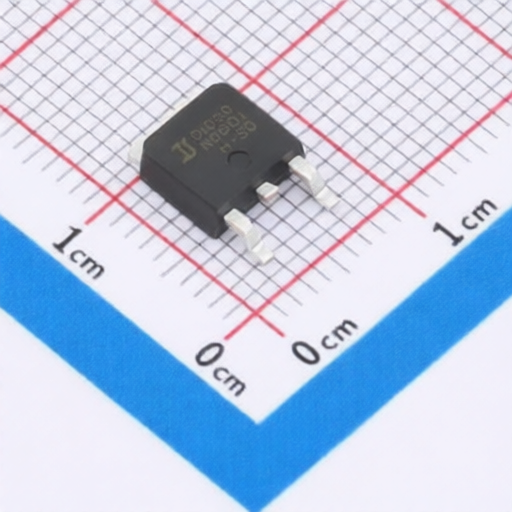

DIOTEC DI050N06D1
Manufacturer:
DIOTEC
Mfr. Part #:
DI050N06D1
Package:
TO-252-3(DPAK)
Customer #:
Description:
65V 50A 11mΩ@10V,10A 2.5V 1 N-channel 42W TO-252-3(DPAK) Single FETs, MOSFETs
Datasheet:
DIOTEC DI050N06D1
Products Specifications
Manufacturer:
Package:
TO-252-3(DPAK)
Drain to Source Voltage:
65V
Current - Continuous Drain(Id):
50A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
11mΩ@10V,10A
Gate Threshold Voltage (Vgs(th)):
2.5V
Reverse Transfer Capacitance (Crss@Vds):
15pF@30V
Number:
1 N-channel
Input Capacitance(Ciss):
825pF@30V
Pd - Power Dissipation:
42W
Gate Charge(Qg):
14nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIOTEC
881 Products
DIOTEC, founded in 1970, is a European company specializing in the design and manufacture of semiconductor discrete devices. It primarily produces diodes, bridge rectifiers, and ESD protection components.
