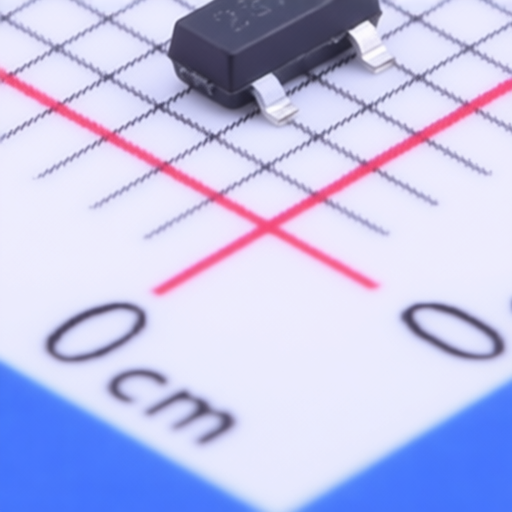

DIODES DMG2305UX-13
Manufacturer:
DIODES
Mfr. Part #:
DMG2305UX-13
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 5A SOT-23
Description:
P-Channel 20V 5A 1.4W Surface Mount SOT-23
Datasheet:
DIODES DMG2305UX-13
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
40mΩ@4.5V;52mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
900mV@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
77pF
Number:
-
Output Capacitance(Coss):
85pF
Input Capacitance(Ciss):
808pF
Pd - Power Dissipation:
1.4W
Gate Charge(Qg):
10.2nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 10000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
