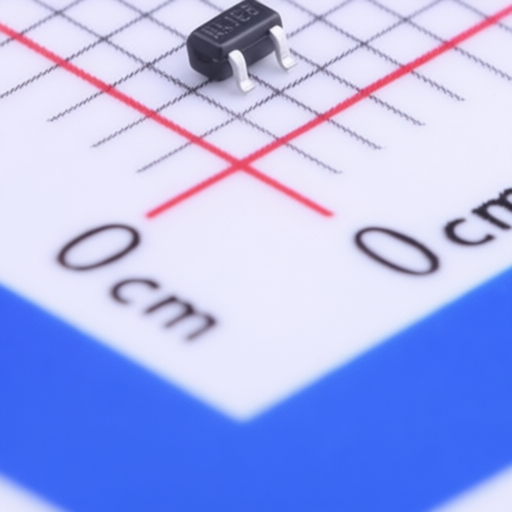

DIODES DMG1012T-7
Manufacturer:
DIODES
Mfr. Part #:
DMG1012T-7
Package:
SOT-523
Customer #:
Key Attributes:
MOSFET N-CH 20V 630mA SOT-523
Description:
N-Channel 20V 630mA 280mW Surface Mount SOT-523
Datasheet:
DIODES DMG1012T-7
Products Specifications
Manufacturer:
Package:
SOT-523
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
630mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
300mΩ@4.5V;400mΩ@2.5V;500mΩ@1.8V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
5.37pF
Number:
1 N-channel
Output Capacitance(Coss):
9.68pF
Input Capacitance(Ciss):
60.67pF
Pd - Power Dissipation:
280mW
Gate Charge(Qg):
736.6pC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
