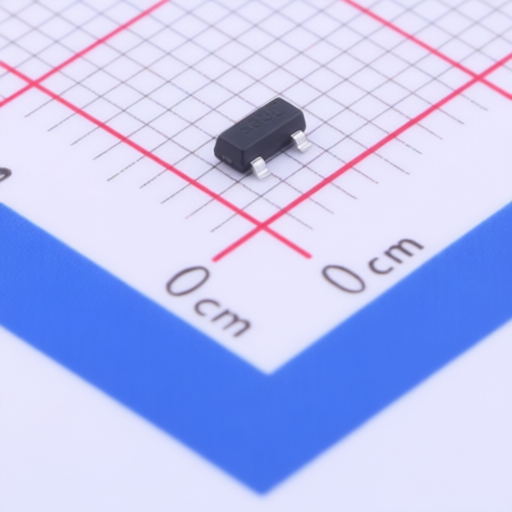

DIODES DMN2056U-7
Manufacturer:
DIODES
Mfr. Part #:
DMN2056U-7
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 4A SOT-23
Description:
N-Channel 20V 4A 0.94W Surface Mount SOT-23
Datasheet:
DIODES DMN2056U-7
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4A
Operating Temperature -:
-55℃~+150℃
RDS(on):
45mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
34pF
Number:
1 N-channel
Output Capacitance(Coss):
47pF
Input Capacitance(Ciss):
339pF
Pd - Power Dissipation:
940mW
Gate Charge(Qg):
4.3nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIODES
6026 Products
Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets.
