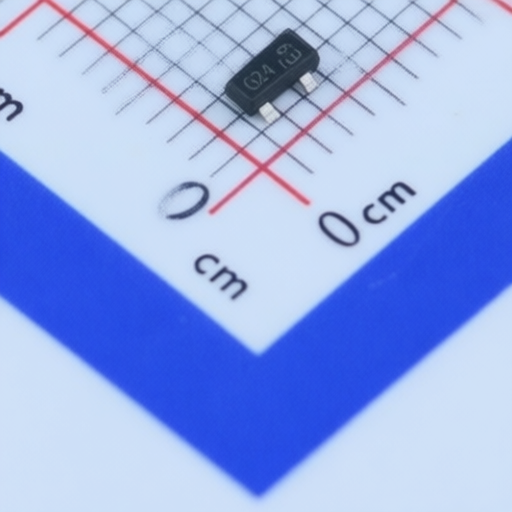

DIODES DMG2307L-7
Manufacturer:
DIODES
Mfr. Part #:
DMG2307L-7
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 30V 3.8A SOT-23
Description:
P-Channel 30V 3.8A 1.36W Surface Mount SOT-23
Datasheet:
DIODES DMG2307L-7
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
3.8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
134mΩ@4.5V,2.5A
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
45.9pF
Number:
-
Output Capacitance(Coss):
51.3pF
Input Capacitance(Ciss):
371.3pF
Pd - Power Dissipation:
1.36W
Gate Charge(Qg):
8.2nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIODES
6026 Products
Diodes Incorporated is a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic, analog and mixed-signal semiconductor markets.
