DIANWEI 8.15A0.004200

DIANWEI 8.15A0.004200

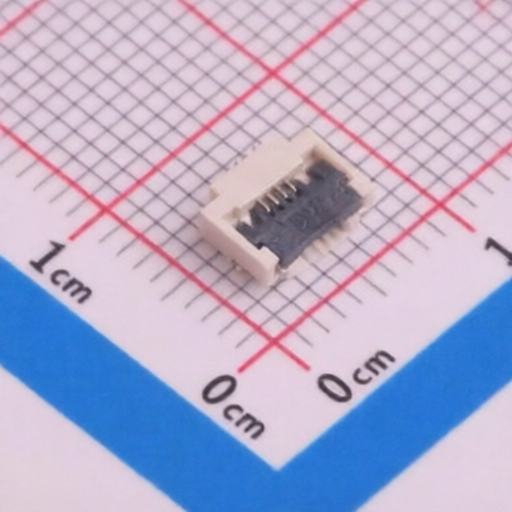

Name: DIANWEI 8.15A0.004200
Brand: DIANWEI

Manufacturer: DIANWEI Asian Brands

Mfr. Part #: 8.15A0.004200

Package: SMD,P=0.5mm,Surface Mount,Right Angle

Customer #:

Key Attributes: CONN FFC FPC 4POS 0.5mm BOTTOM CNT SMD

Description: FFC/FPC Connector 4 Position 0.5mm Pitch Bottom Contact

Datasheet: DIANWEI 8.15A0.004200

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

DIANWEI

Package:

SMD,P=0.5mm,Surface Mount,Right Angle

Operating Temperature:

-40℃~+85℃

Locking Feature:

Hinged Lid

Number of Contacts:

Pitch:

0.5mm

Current Rating:

500mA

Voltage Rating (Max):

50V

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Contact Plating:

Gold

Contact Material:

Copper alloy

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

DIANWEI

126 Products

Asian Brand

DIANWEI, established in 2006, is a national high-tech enterprise dedicated to providing micro and precision connector products for global electronics companies. The company mainly produces FPC electronic connectors with 0.3-1.0mm pitch, Fakra coaxial RF connectors, and cable assemblies.
