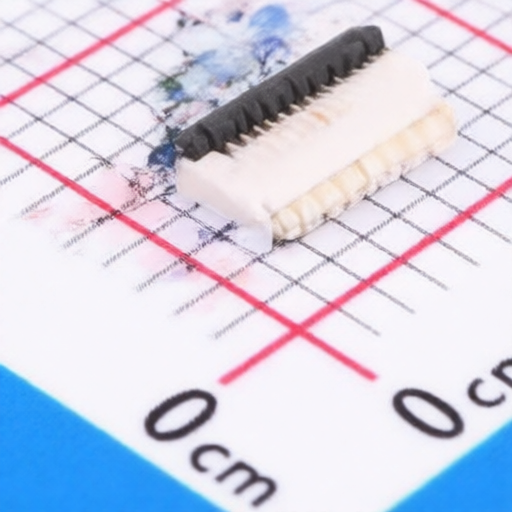

DIANWEI 8.03A0.013200
Manufacturer:
DIANWEI
Asian Brands
Mfr. Part #:
8.03A0.013200
Package:
SMD,P=0.3mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 13POS 0.3mm TOP AND BOTTOM CNT SMD
Description:
FFC/FPC Connector 13 Position 0.3mm Pitch Double-Sided Contacts, Top and Bottom Entry -40℃~+80℃
Datasheet:
DIANWEI 8.03A0.013200
Products Specifications
Manufacturer:
Package:
SMD,P=0.3mm,Surface Mount,Right Angle
Operating Temperature:
-40℃~+80℃
Number of Contacts:
13P
Pitch:
0.3mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
FFC, FCB Thickness:
0.2mm
Contact Plating:
Gold
Contact Material:
Copper alloy
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
DIANWEI
126 Products
DIANWEI, established in 2006, is a national high-tech enterprise dedicated to providing micro and precision connector products for global electronics companies. The company mainly produces FPC electronic connectors with 0.3-1.0mm pitch, Fakra coaxial RF connectors, and cable assemblies.
