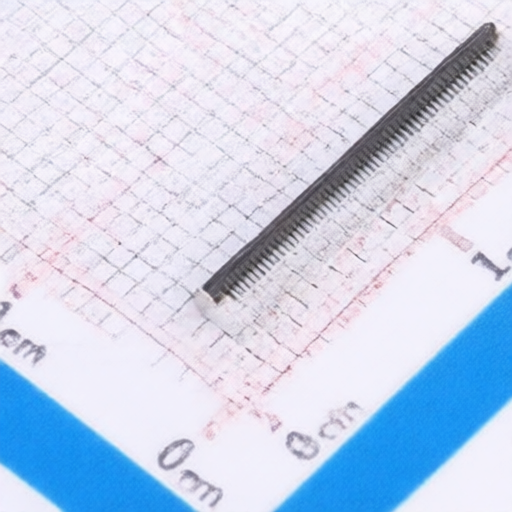

DIANWEI 8.03A0.045200

DIANWEI 8.03A0.045200

Name: DIANWEI 8.03A0.045200
Brand: DIANWEI

Manufacturer: DIANWEI Asian Brands

Mfr. Part #: 8.03A0.045200

Package: SMD,P=0.3mm,Surface Mount,Right Angle

Customer #:

Key Attributes: CONN FFC FPC 45POS 0.3mm TOP AND BOTTOM CNT SMD

Description: FFC/FPC Connector 45 Position 0.3mm Pitch Double-Sided Contacts, Top and Bottom Entry -40℃~+80℃

Datasheet: DIANWEI 8.03A0.045200

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

DIANWEI

Package:

SMD,P=0.3mm,Surface Mount,Right Angle

Operating Temperature:

-40℃~+80℃

Number of Contacts:

45P

Pitch:

0.3mm

Contact Type:

Double-Sided Contacts, Top and Bottom Entry

FFC, FCB Thickness:

0.2mm

Contact Plating:

Gold

Contact Material:

Copper alloy

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

DIANWEI

126 Products

Asian Brand

DIANWEI, established in 2006, is a national high-tech enterprise dedicated to providing micro and precision connector products for global electronics companies. The company mainly produces FPC electronic connectors with 0.3-1.0mm pitch, Fakra coaxial RF connectors, and cable assemblies.
