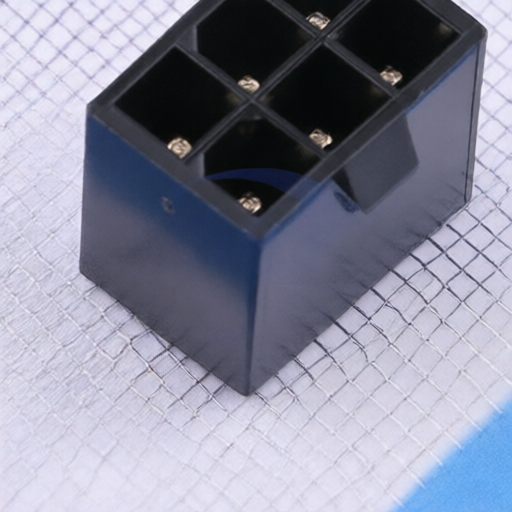

CST CS-1150-06EBG
Manufacturer:
CST
Asian Brands
Mfr. Part #:
CS-1150-06EBG
Package:
Through Hole,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH 6POS 4.2mm
Description:
1x6P PA66 4.2mm 250V 6 1 -40℃~+105℃ Through Hole Through Hole,P=4.2mm Headers, Male Pins RoHS
Datasheet:
CST CS-1150-06EBG
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.2mm
Y-Width of Bottom Edge on Board:
9.7mm
Flame Retardant Rating:
UL94V-2
Pins Structure:
1x6P
Contact Material:
PA66
Pitch:
4.2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
14.1mm
Operating Temperature:
-40℃~+105℃
Z-Height of the Board:
12.8mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 250 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CST
820 Products
Shenzhen Yongfengying Electronics Co., Ltd. (CST) was established in 2003. The company is located in Bao'an, Zhuan'an, Shenzhen, China. The main production and sales of electronic connector products, as well as mold manufacturing and & nbsp; harness parts processing. The company upholds the business philosophy of honesty, pragmatism, unity, and hard work. It has achieved long-term development in just a few years thanks to strong design and technology research and development capabilities and distribution channels around the world. While the company is growing rapidly, it attaches great importance to the training of its employees, pays more attention to quality control, strictly implements the ISO9001 quality system and the ISO14001 environmental system, and shares social responsibility to provide green, pollution-free products. 2004 began to apply for UL safety certification, In early 2005, the factory passed ISO9001:2004 system certification. Then passed TUV product certification. Wit
