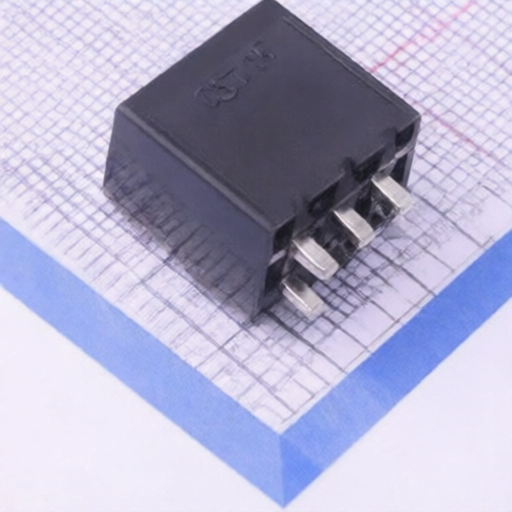

CST CS-1150-06E
Manufacturer:
CST
Asian Brands
Mfr. Part #:
CS-1150-06E
Package:
Through Hole,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH 6POS 4.2mm
Description:
Connector Header 6 position 4.2mm Pitch 7A Through Hole -40℃~+105℃
Datasheet:
CST CS-1150-06E
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.2mm
Y-Width of Bottom Edge on Board:
9.7mm
Reference Series:
-
Pins Structure:
2x3P
Contact Material:
PA66
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
UL94V-2
Pitch:
4.2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
14.1mm
Z-Height of the Board:
13mm
Mounting Type:
Through Hole
Row Spacing:
4.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 250 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
