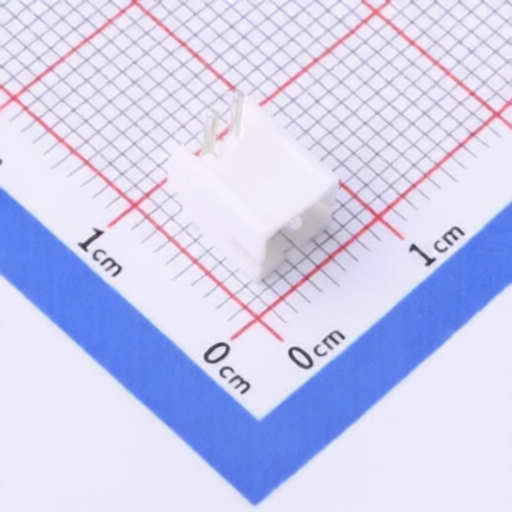

CST CS-1125R-02A
Manufacturer:
CST
Asian Brands
Mfr. Part #:
CS-1125R-02A
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 2mm
Description:
Connector Header 2 position 2mm Pitch 2A Right Angle -40℃~+105℃
Datasheet:
CST CS-1125R-02A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
6.1mm
Pins Structure:
1x2P
Reference Series:
-
Contact Material:
PA66
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
UL94V-0
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
6mm
Z-Height of the Board:
5mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
