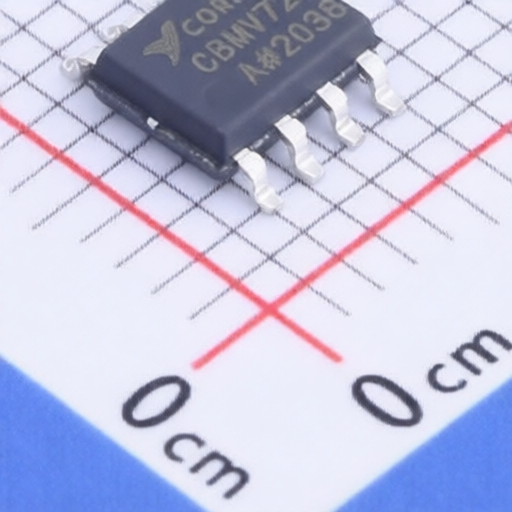

Corebai Microelectronics CBMV722AS8
Manufacturer:
Corebai Microelectronics
Asian Brands
Mfr. Part #:
CBMV722AS8
Package:
SOP-8
Customer #:
Key Attributes:
High gain-bandwidth, rail-to-rail input/output operational amplifier
Description:
Standard (General Purpose) Amplifier Rail-to-Rail Input, Rail-to-Rail Output SOP-8
Datasheet:
Corebai Microelectronics CBMV722AS8
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
500uV
Ib - Input Bias Current:
1pA
Slew Rate:
7V/us
Common Mode Rejection Ratio(CMRR):
85dB
Quiescent Current(Iq):
1.15mA
Output Current:
70mA
Operating Temperature:
-40℃~+125℃
Gain Bandwidth Product:
10MHz
Voltage - Supply:
-2.75V~-1.25V;2.5V~5.5V;1.25V~2.75V
Input Offset Voltage Drift(Vos TC):
2.6uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
1pA
Noise density(eN):
9.5nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Corebai Microelectronics
176 Products
Corebai Microelectronics (Beijing) Co., Ltd. (Corebai Microelectronics) was established in 2014, in the spirit of: "Creating value for customers is the value of our existence" concept, "special core development", "use core services", "create core In the future, the entrepreneurial purpose, after many years of development, obtained the high-tech enterprise certificate in 2016, and the Zhongguancun high-tech enterprise certificate in 2017 and joined the semiconductor association. Now it has applied for more than 40 layout patents. Sufficient financial strength and strong technical strength have led to the rapid development of products independently developed and successfully marketed by Corebai Microelectronics. At present, it has reached more than 100 models in three categories, all in compliance with EU RoHS standards and green environmental protection standards. The main products that have been developed are amplifiers, interface circuits, power management, time-to-digital converters,
