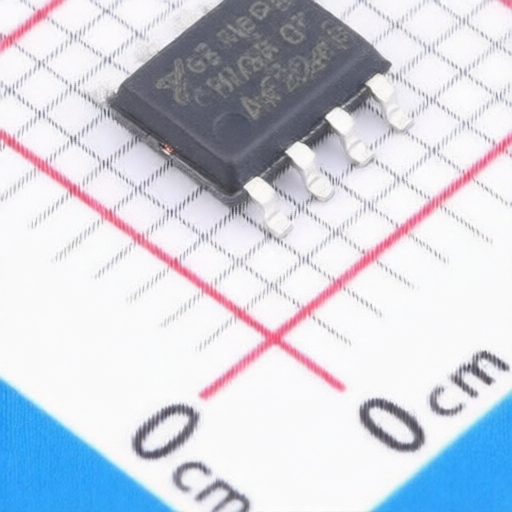

Corebai Microelectronics CBM8336AS8
Manufacturer:
Corebai Microelectronics
Asian Brands
Mfr. Part #:
CBM8336AS8
Package:
SOP-8
Customer #:
Key Attributes:
Single-supply, rail-to-rail input/output CMOS operational amplifier
Description:
10uV 20pA 0.2V/us 110dB Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Amplifiers RoHS
Datasheet:
Corebai Microelectronics CBM8336AS8
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
10uV
Ib - Input Bias Current:
20pA
Slew Rate:
0.2V/us
Quiescent Current(Iq):
25uA
Common Mode Rejection Ratio(CMRR):
110dB
Operating Temperature:
-45℃~+125℃
Output Current:
30mA
Voltage - Supply:
1.8V~5.5V;-2.75V~-900mV;900mV~2.75V
Input Offset Voltage Drift(Vos TC):
50nV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
10pA
Noise density(eN):
70nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
