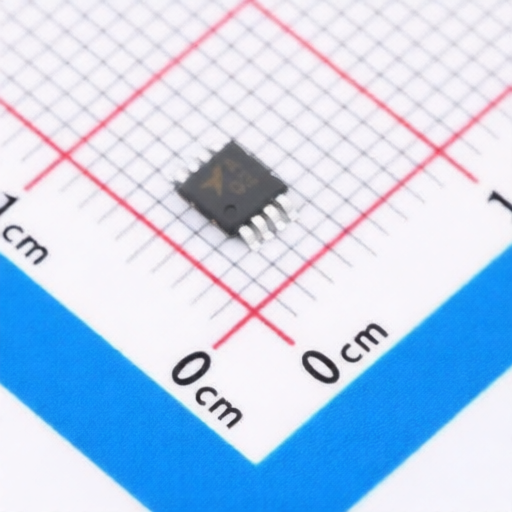

Corebai Microelectronics CBM6002AMS8
Manufacturer:
Corebai Microelectronics
Asian Brands
Mfr. Part #:
CBM6002AMS8
Package:
MSOP-8
Customer #:
Key Attributes:
Single-supply, rail-to-rail input/output, low input bias current operational amplifier
Description:
3.5mV 1pA 800V/ms 70dB 1MHz 1.8V~6V 2 Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Amplifiers RoHS
Datasheet:
Corebai Microelectronics CBM6002AMS8
Products Specifications
Manufacturer:
Package:
MSOP-8
Vos - Input Offset Voltage:
3.5mV
Ib - Input Bias Current:
1pA
Slew Rate:
800V/ms
Common Mode Rejection Ratio(CMRR):
70dB
Quiescent Current(Iq):
75uA
Operating Temperature:
-40℃~+125℃
Output Current:
84mA
Gain Bandwidth Product:
1MHz
Voltage - Supply:
1.8V~6V
Input Offset Voltage Drift(Vos TC):
2.7uV/℃
Maximum Power Supply Range (Vdd-Vss):
6V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
1pA
Noise density(eN):
27nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
