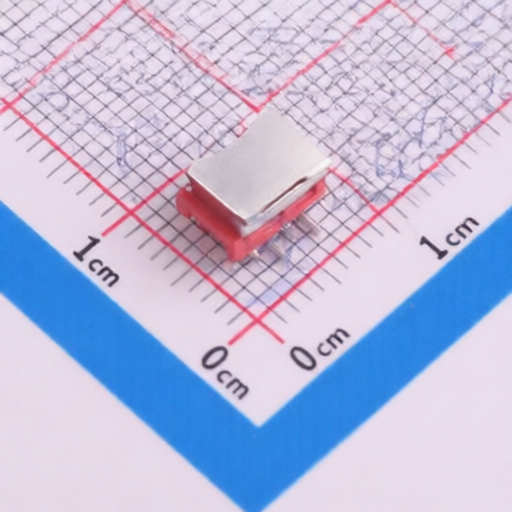

CONNFLY Elec DS1015-06-04R6SR
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1015-06-04R6SR
Package:
SMD,P=1.27mm
Customer #:
Key Attributes:
Micro Match Female Vertical SMT Type
Description:
Tin Copper alloy 1.27mm 2 2 -40℃~+105℃ Surface Mount,Vertical 1.5mm SMD,P=1.27mm Headers, Male Pins RoHS
Datasheet:
CONNFLY Elec DS1015-06-04R6SR
Products Specifications
Manufacturer:
Package:
SMD,P=1.27mm
Y-Width of Bottom Edge on Board:
7mm
Flame Retardant Rating:
UL94V-0
Contact Plating:
Tin
Contact Material:
Copper alloy
Pitch:
1.27mm
Number of PINs Per Row:
2
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
6.96mm
Operating Temperature:
-40℃~+105℃
Mounting Type:
Surface Mount,Vertical
Row Spacing:
1.5mm
Z-Height of the Board:
5.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CONNFLY Elec
1183 Products
Connfly Electronic Co., Ltd.
(hereinafter referred to as "Connfly" or "CONNFLY Elec") was founded in 2006, mainly engaged in the R&D, production, and sales of connectors and wire products in various fields. The company has passed ISO9001 quality management system certification, ISO14001 environmental system certification, OHSAS18001 occupational health and safety system certification, and IATF16949 automotive quality management system certification. The products have passed certifications such as CE, FCC, and UL. The company's products include pins, buses, connectors, switches, FPC, FFC, various electronic wires, network sockets, wafers, wiring wires, etc. The products produced by the company meet the requirements of Rohs2.0 and the REACH environmental protection directive. Products are widely used in new energy, 5G networks, automotive electronics, heavy industrial waterproofing equipment, and medical fields.
