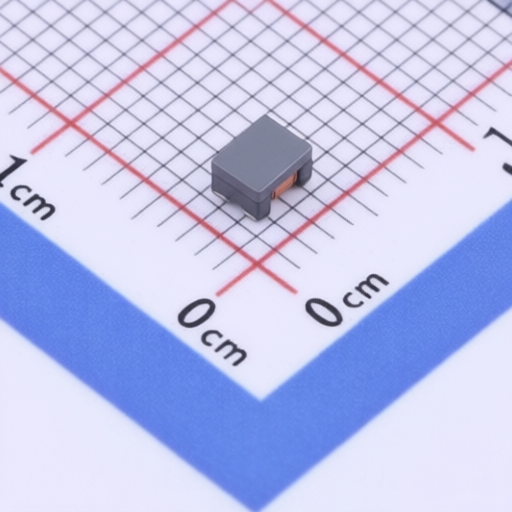

Coilank AACT322523R220
Manufacturer:
Coilank
Asian Brands
Mfr. Part #:
AACT322523R220
Package:
SMD-4P,3.2x2.5mm
Customer #:
Key Attributes:
CMC 22uH 250mA 2LN 1.1kΩ SMD
Description:
22uH@100kHz 2Line Common Mode Choke Surface Mount-4P 3.2x2.5mm 1.1kΩ@10MHz 250mA DCR 500mΩ
Datasheet:
Coilank AACT322523R220
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,3.2x2.5mm
Inductance @ Frequency:
22uH@100kHz
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
500mΩ
Voltage Rating - DC:
80V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
