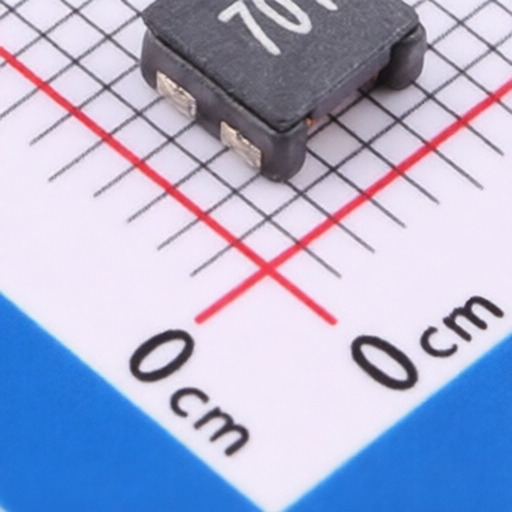

COILMX MACM4520-701
Manufacturer:
COILMX
Asian Brands
Mfr. Part #:
MACM4520-701
Package:
SMD-4P,4.7x4.5mm
Customer #:
Key Attributes:
CMC 2.2A 700Ω SMD
Description:
Common Mode Choke Surface Mount-4P 4.7x4.5mm 700Ω@100MHz 2.2A DCR 59mΩ
Datasheet:
COILMX MACM4520-701
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,4.7x4.5mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
59mΩ
Number of Lines:
2
Voltage Rating - DC:
50V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
